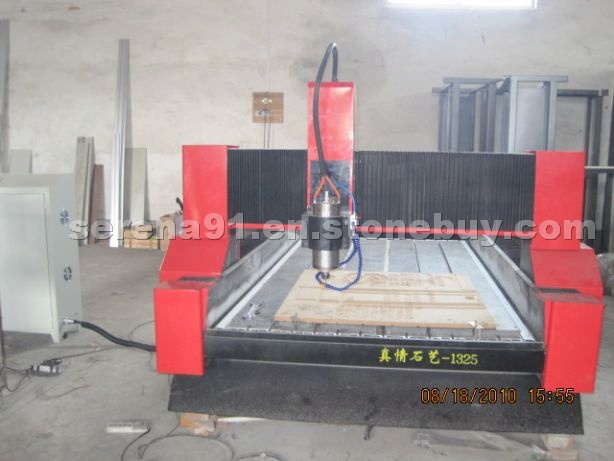

CX-1325 stone engraving machine

• Place of Origin:

   China

• Type:

  Others

• Genre:

  Machinery & Equipment

• sCode:

  STPR1464904

• Place of Origin:

  China
• Stone series engraving machine is mainly used in the engraving of the hard materials such as marble, granite, glass, stone etc.
  Specifications
  Adopt Taiwan linear guide rail. the bearing of the lead guide rail is face to face, the long time use precision is high.
  German double nut automatically disappear gap ball screw.
  High speed drivers, fast speed and great strength.
  No dust oiling structure, guarantee the long term running of the mechanical aspect.
  Break point and break knife continue engraving function, can engrave at any place as you like.
  Strong compatibility: compatible various CAD/CAM software like Type3/artcam/castmate/proe/Corelerow/Wentai.
  High power frequency changing water cooled spindle, can process hard materials efficiently.
  Technical-parameters
  ModelCX1325Option
  XY working area1300*2500mmNcstudio control system under Windows OS.
  Table size1380*3000mm
  Maximum area of Z axis300mm
  Highest running speed30m/min
  Highest engraving speed8m/min
  Precision0.005mm
  Max feeding height300mm
  Spindle power4.5/main axis3.5/4.5/6.0KW/Water/Air-cooling（Option）
  Rotate speed of the spindle0-24000rpm(Air-cooling spindle with 18000 rpm)
  Work ModeStepperServo
  Cooling systemWater cooling

  After-sales service
  1.One year after-sales service
  2.User-friendly English manual for machine using and maintaining
