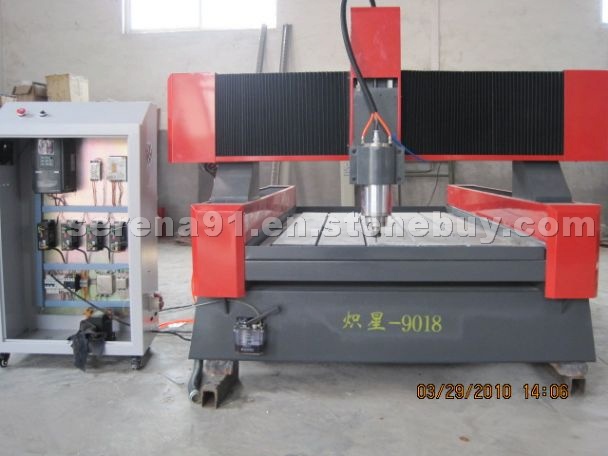

CX-9018 stone engraving machine

• Place of Origin:

   China

• Type:

  Others

• Genre:

  Machinery & Equipment

• sCode:

  STPR1468565

• Place of Origin:

  China
• Chixing Stone Series Router_CX-9018
  ItemsParameters
  Working area(mm)X900
  Y1800
  Z200
  Table StructureTable Surfacewater sink+T-slot with Polyester covers
  Transmission systemXGear Rack from Taiwan
  YGear Rack from Taiwan
  ZBallscrew from Taiwan but with German technology
  Lead rail systemXLinear round guide rail from mainland
  YLinear round guide rail from mainland
  ZLinear round guide rail from mainland
  SpindlePower3.0 kw
  Rotating Speed0-24000 rpm (Optional air-cooling spindle with 18000 rpm)
  Cooling TypeWater-cooling
  OriginChina
  Collet diameter3/4/6/12.7mm
  About drive systemsXstepper
  Ystepper
  Zstepper
  Stepper motor and driverMade in China
  Servo motor and driverPanasonic/Yaskawa (optional)
  Dust-protection system for X,Y,ZFor your option
  Tool sensorOption
  Machine bodyWhole cast iron/inblock cast/Square tube is optional
  Software environmantWindows 98/2000/XP
  Control System Ncstudio control system under Windows OS . DSP (USB) is optional
  Data reading modeline by line
  Compatible file formatsG code ; *.u00 ; *.mmg ; *.plt .
  Compatible CAD/CAM SoftwaresUcancam V8 / Type3 / Artcam /
  Working VoltageAC380V 50Hz
  Table size1080*2300mm
  Precision0.005mm
  Max speed5.0m/min
  Max engraving speed3.0m/min
  Max feeding height150mm
  Work-holding devicesby fixture
  Interface typeUSB
  Power(not include the spindle)500W
  Cutting thickness of materialDepends on the materials
  Warranty guaranteeOne-year after-sale services
  The above parameters are subject to change without prior notice.
